KC Hilites

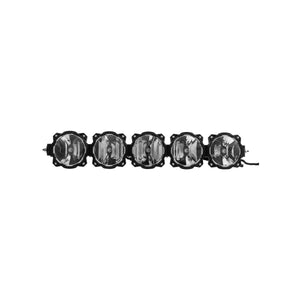

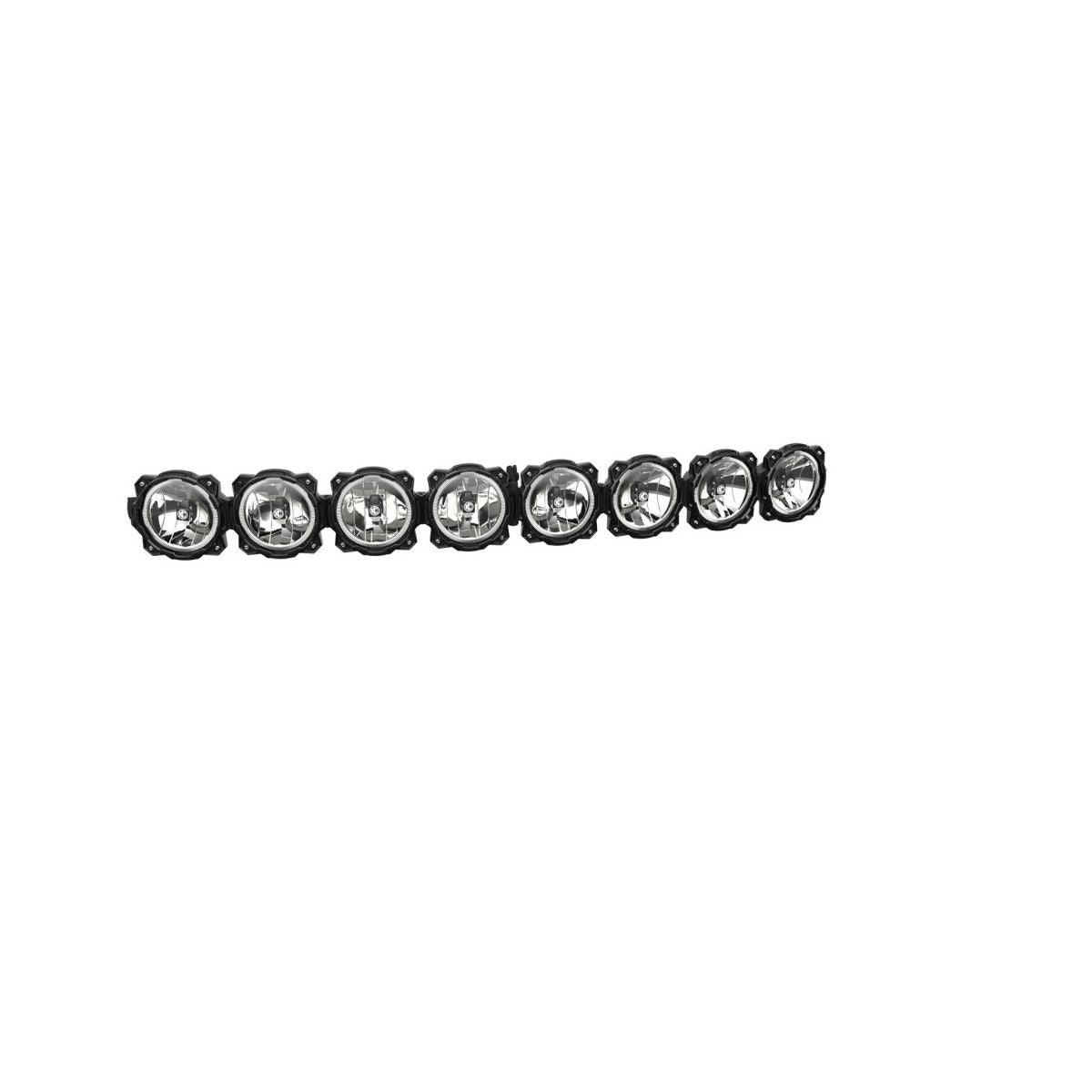

GRAVITY® LED PRO6 LED LIGHT BARS

GRAVITY® LED PRO6 LED LIGHT BARS

Regular price $799.99 USD
Regular price Sale price $799.99 USD
Sale Sold out
Size



Your order will be shipped between May 31st - June 6th.




FEATURES

-Patented Pro6 Infinity Ring™ System: Easily transform the Pro6 light bar between straight or curved light orientations
-Every Pro6 is powered by KC patented Gravity® Reflective Diode(GRD) technology for unparalleled beam shape, light performance and clarity
-Gravity® G6 LED reflector optics utilizing a combination of Driving and Wide-40 Beam pattern lights for optimal lighting balance and performance
-Modular design is expandable to different size widths and beam patterns to suit specific applications

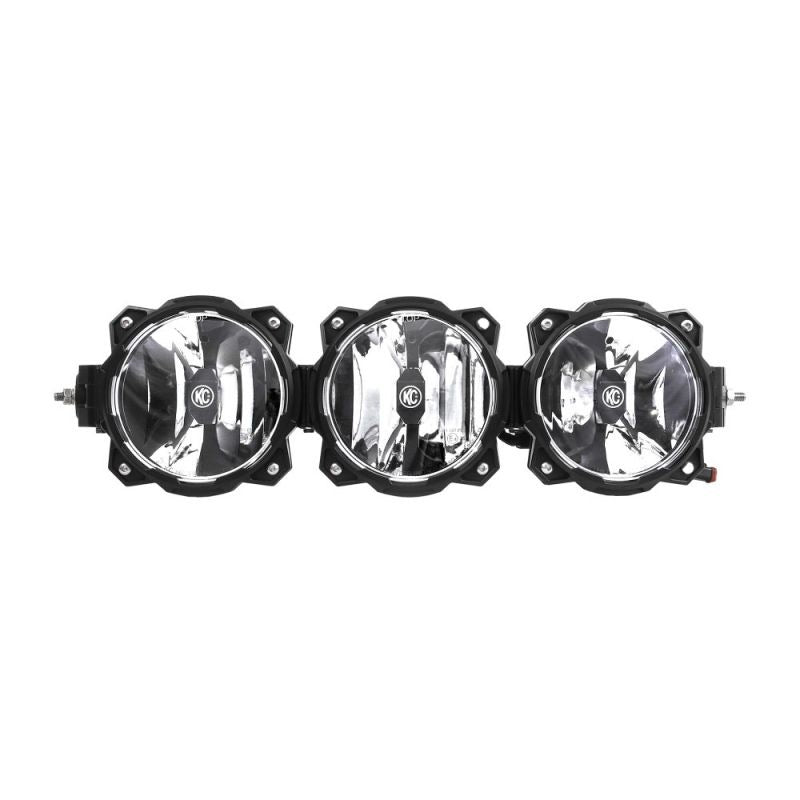

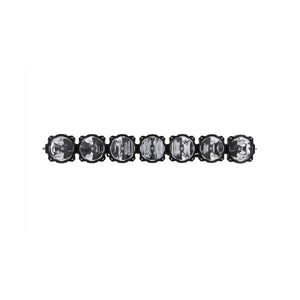

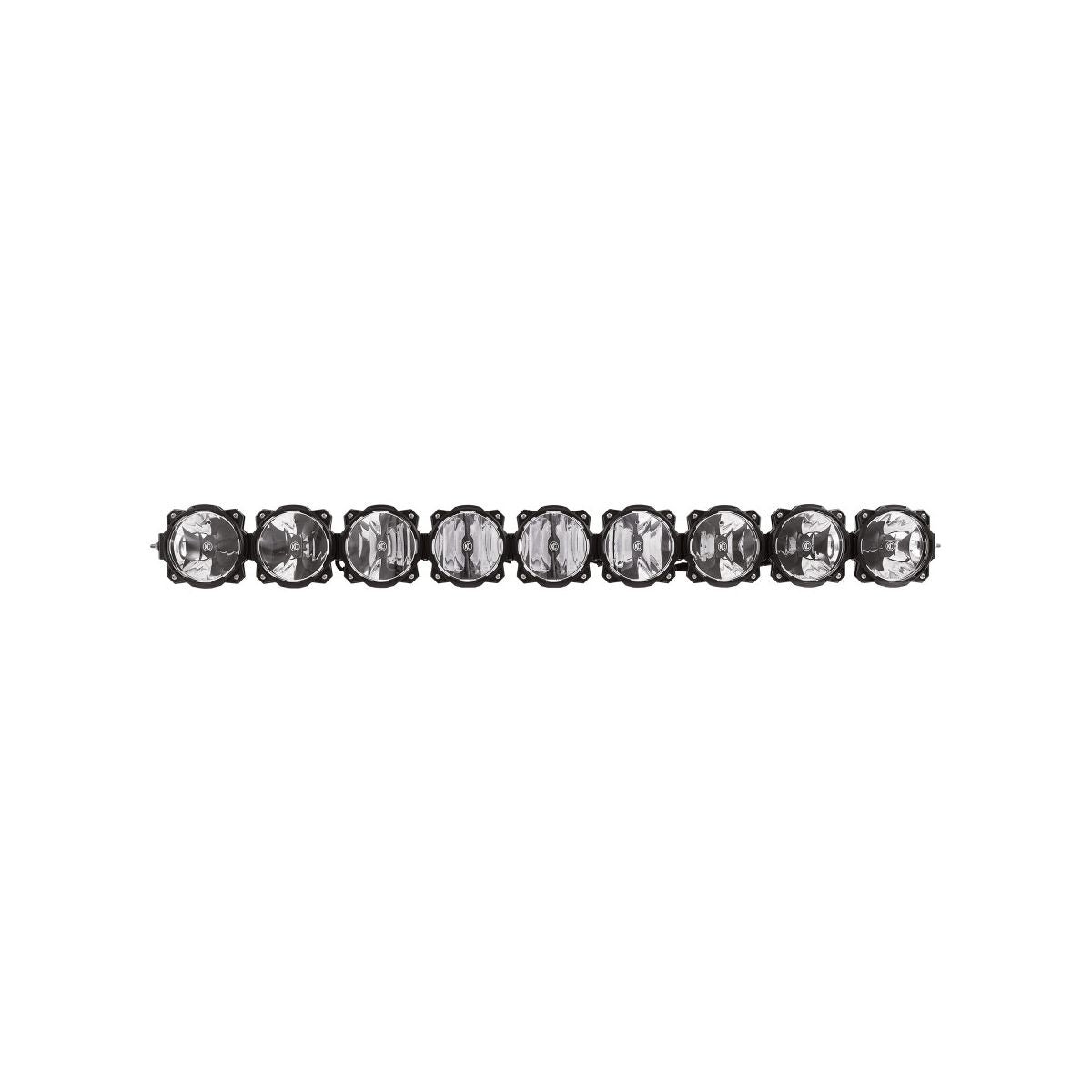

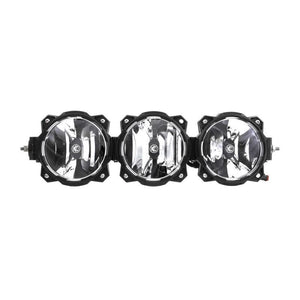

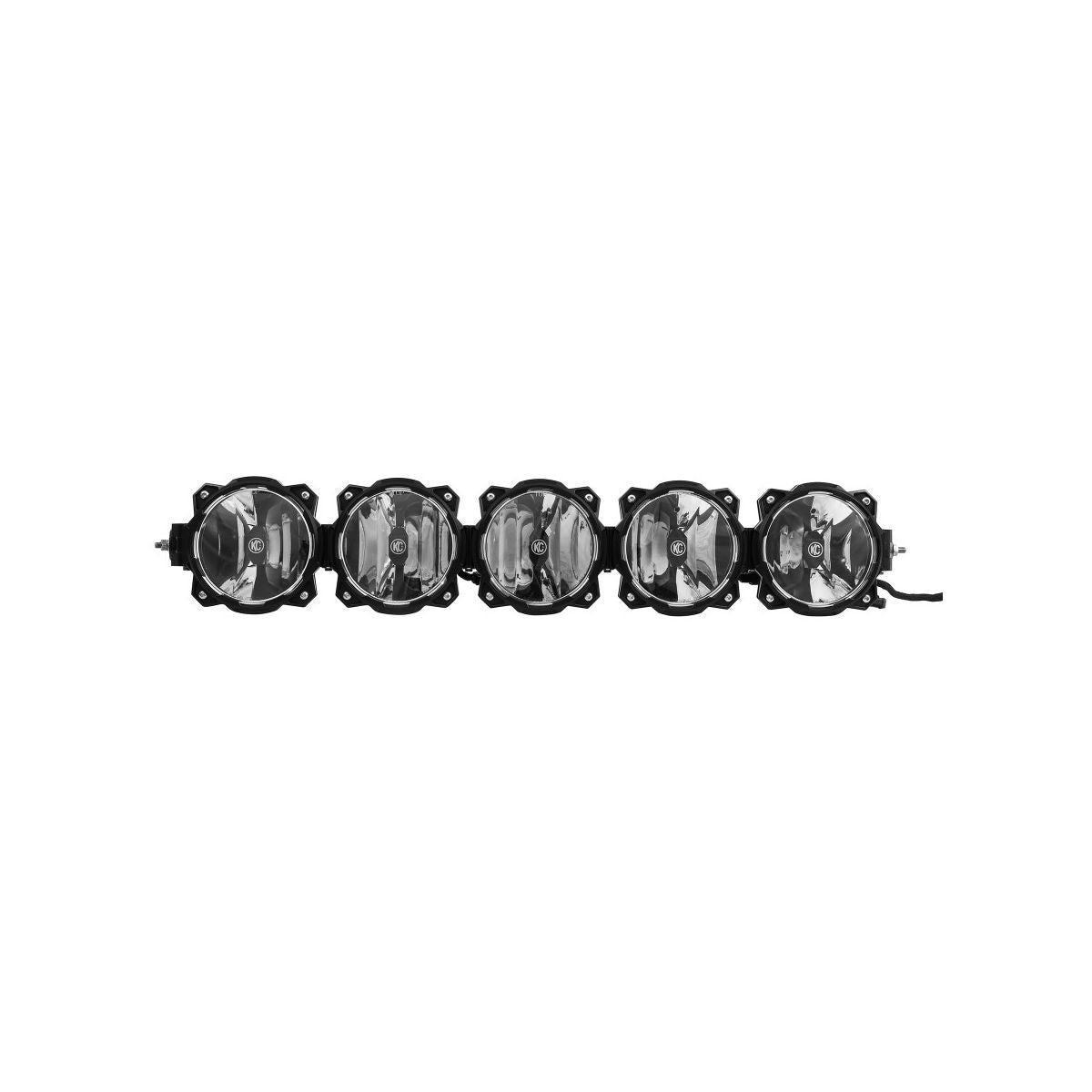

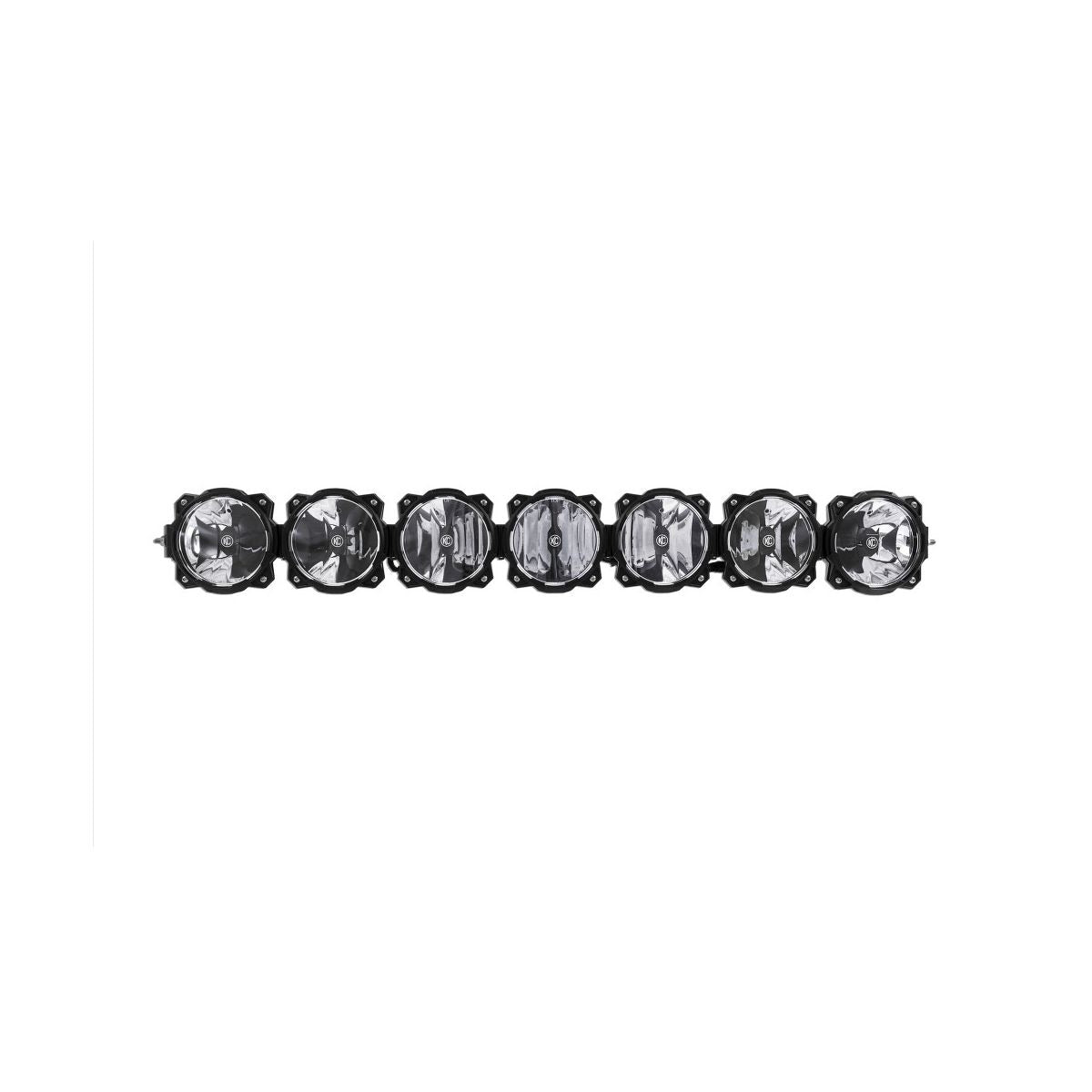

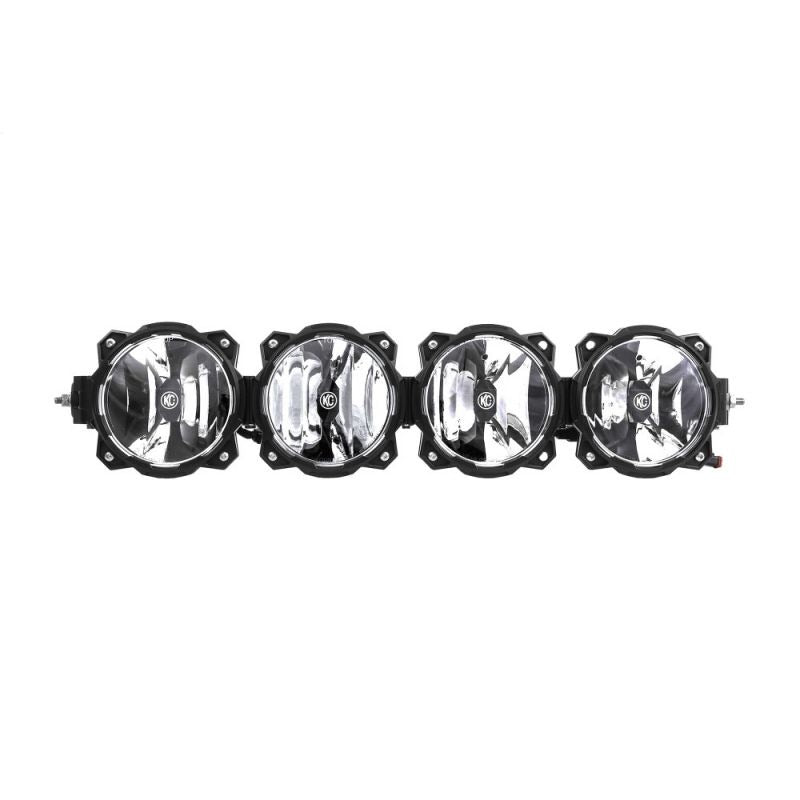

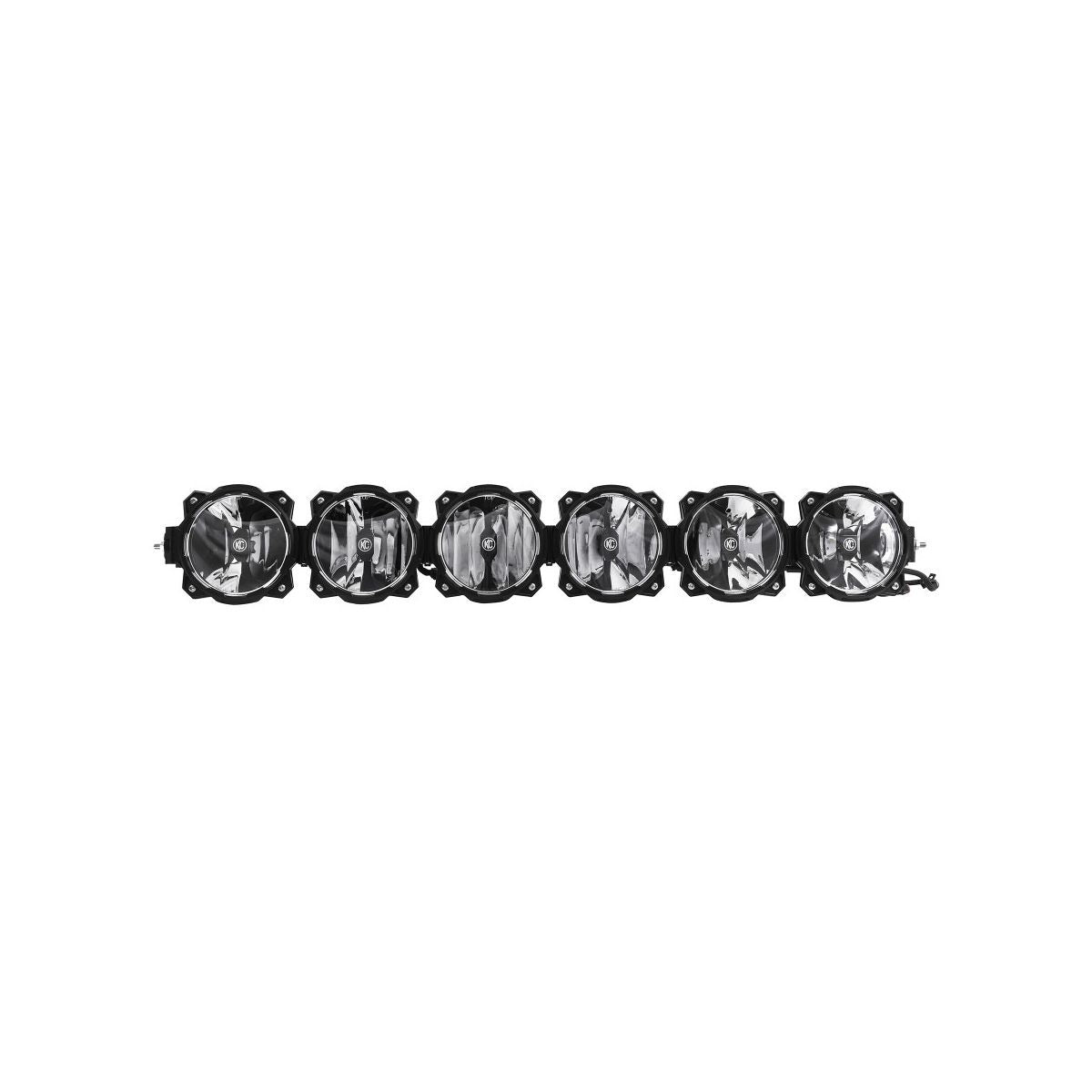

-Light Bar Systems Available in 20" 3-Ring, 26" 4-Ring, 32" 5-Ring, 39" 6-Ring, 45" 7-Ring, 50" 8-Ring, and 57" 9-Ring widths (Vehicle specific kits also available)

LIGHT PERFORMANCE
-Raw Lumens: 20" = 6,900 lm, 26" = 9,200 lm, 32" = 11,500 lm, 39" = 13,800 lm, 45" = 16,100 lm, 50" = 18,400 lm, 57" = 23,009 lm,
-Lux @ 10 Meters: 20" = 2,794 lx, 26" = 3,425 lx, 32" = 4,200 lx, 39" = 5,150 lx, 45" = 6,100 lx, 50" = 6,700 lx, 57" = 7,500 lx
-Candela: 20" = 279,400 cd, 26" = 342,500 cd, 32" = 420,000 cd, 39" = 515,000 cd, 49" = 610,000 cd, 50" = 670,000 cd, 57" = 750,000 cd
-Beam Distance (Meters): 20" = 1,057m, 26" = 1,170m, 32" = 1,296m, 39" = 1,435m, 45" = 1,562m, 50” = 1,637m, 57” = 1,732m

SPECIFICATIONS
-Wattage: 20" = 60W, 26" = 80W, 32" = 100W, 39" = 120W, 45" = 140W, 50" =160W, 57" = 180W
-Amp Draw: 5.0-14.67A
-LED Source: Cree XPL HD LED
-LED Color: 5000K
-Voltage: 9-32V
-IP Rating: IP68 -Dimensions:
• 20” 3-Light = H - 6.06" x D - 3.33" x W - 20.325" (Straight) / 20.301" (Curved)
• 26” 4-Light = H - 6.06" x D - 3.33" x W - 26.575" (Straight) / 26.556" (Curved)
• 32” 5-Light = H - 6.06" x D - 3.33" x W - 32.875" (Straight) / 32.708" (Curved)
• 39” 6-Light = H - 6.06" x D - 3.33" x W - 39.125" (Straight) / 38.871" (Curved)
• 45” 7-Light = H - 6.06" x D - 3.33" x W - 45.38" (Straight) / 44.999" (Curved)
• 50” 8-Light = H - 6.06" x D - 3.33" x W - 51.625" (Straight) / 51.086" (Curved)
• 57” 9-Light = H - 6.06" x D - 3.33" x W - 57.625" (Straight) / 57.128" (Curved)

Parts Included With Pro6 LED Light Bar System
-(1) Gravity® Pro6 LED Light Bar
-Light Covers - Black with Yellow KC Logo
-Mounting Brackets and Hardware in Vehicle specific kits
***Note: Light Bar Mounting Brackets not included with Universal Light Bar Systems
-Performance Plug-N-Play Wiring Harness with Illuminated LED Switch
