2016+ Tacoma HC Tube Bumper w/ Tire Swingout
2016+ Tacoma HC Tube Bumper w/ Tire Swingout
*** 2016+ High Clearance Rear Tube Bumper Requires Bedsides to be Cut***
**Photos shown with Fiberglass Width, we will generally be building for factory width, if you have GLASS - Email us your order! **
The Main bumper has the same features as our popular rear tube bumper, only difference will be the upper portion. Here's a quick run down:
Bumper will have - 2" Hitch receiver (Not Rated for Towing, however, we've seen many guys/gals pull watercrafts - dump trailers).
Slotted Tabs for light pods (Baja S2 will fit best), bed reinforcement tabs, and associated hardware. Also included are 2 Body Filler Panels that goes underneath the Tail light.
The Bumper main plates are .375" Thick where it mounts and then becomes .750" thick to the outside of the round tubes to mount recovery or d rings.
The Round Tubes are all 1.75" DOM .120" thick
The Main Hitch receiver is 2" ID and .1875" Thick, ties into the main frame plates to make everything structurally sound.
Includes LED Lights for your license plate.

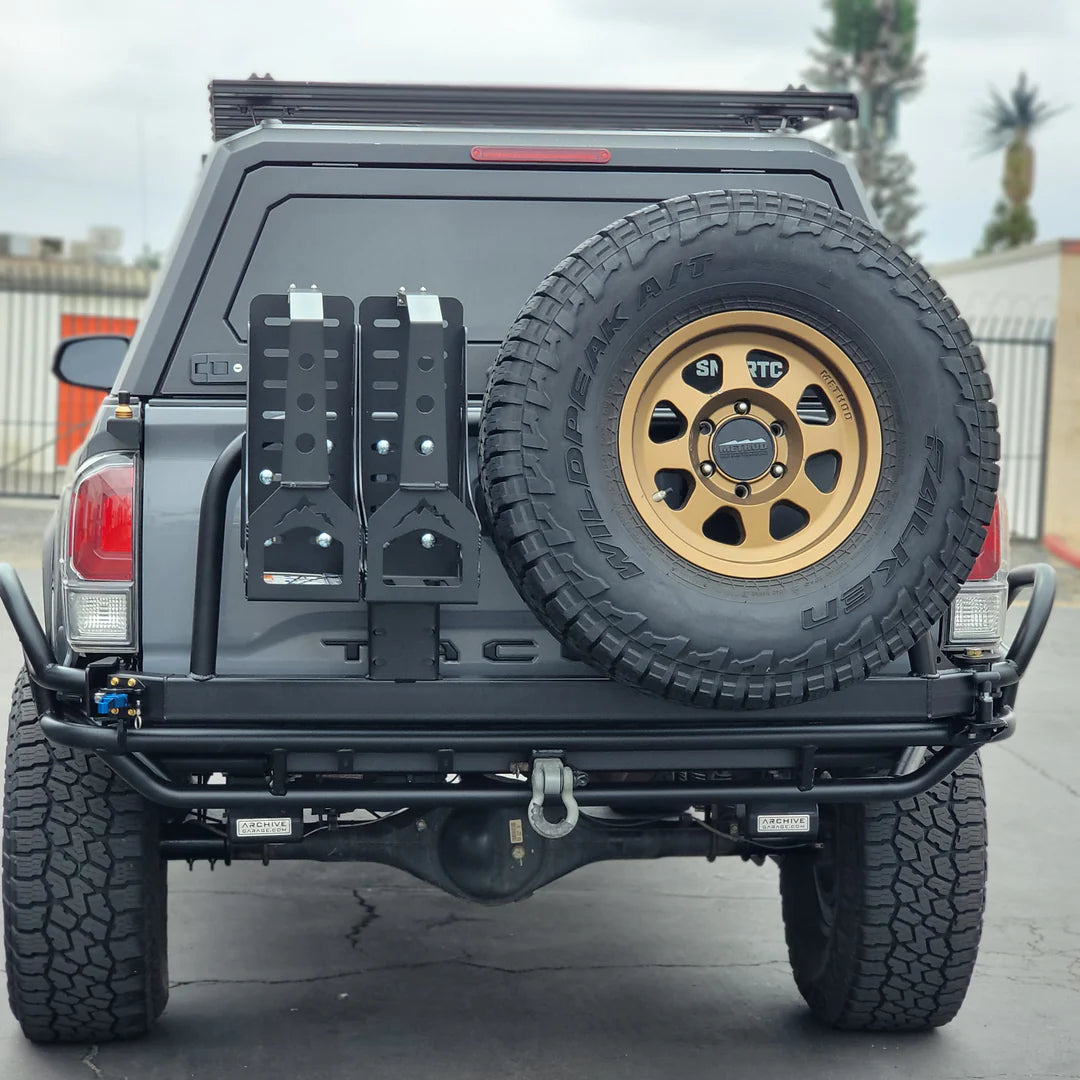

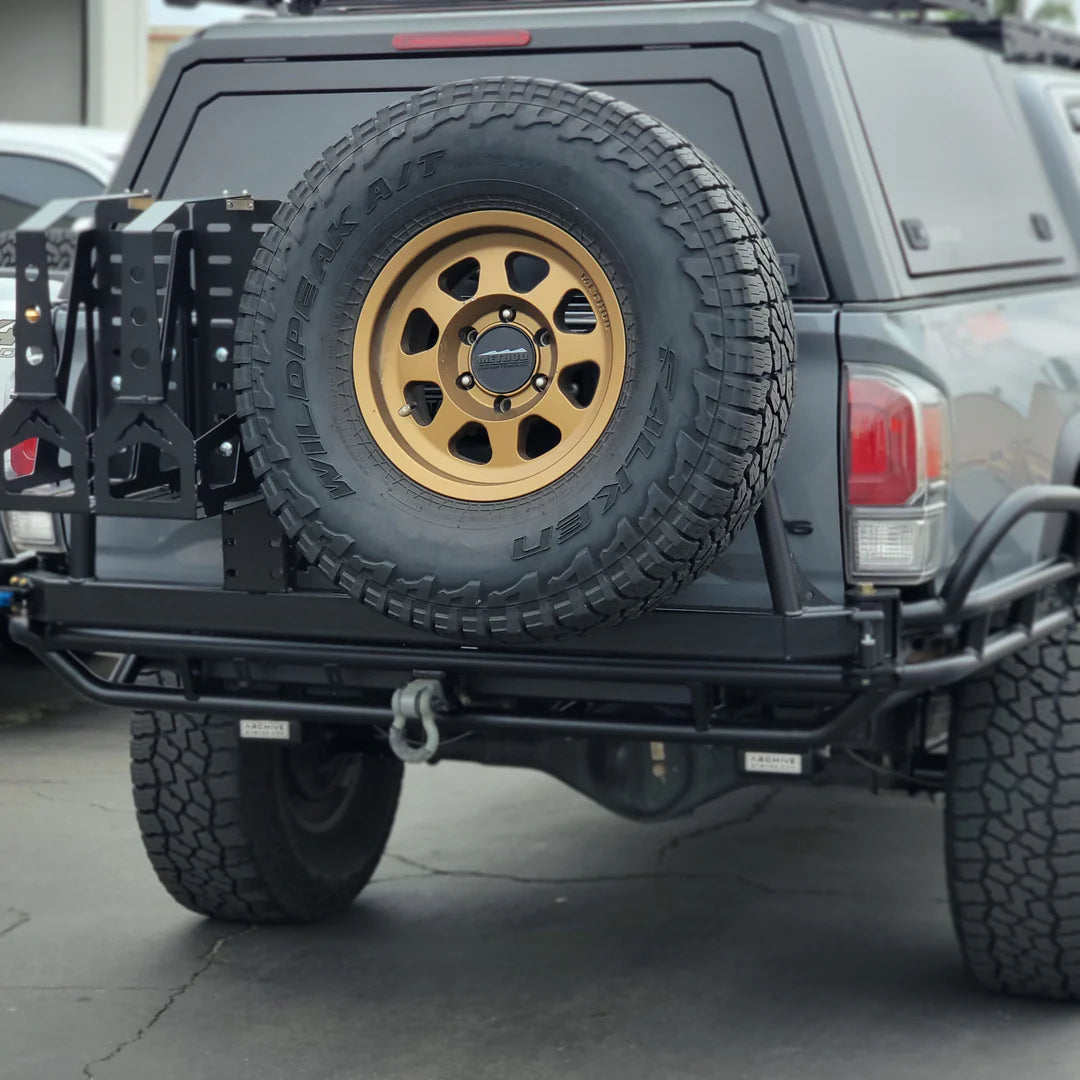

Single Swingout: Swingout comes standard with Tire Mount to house up to 37s and molle panel style across swing out arm. Can mount License plate along the bottom of the arm, or on top.
Construction:

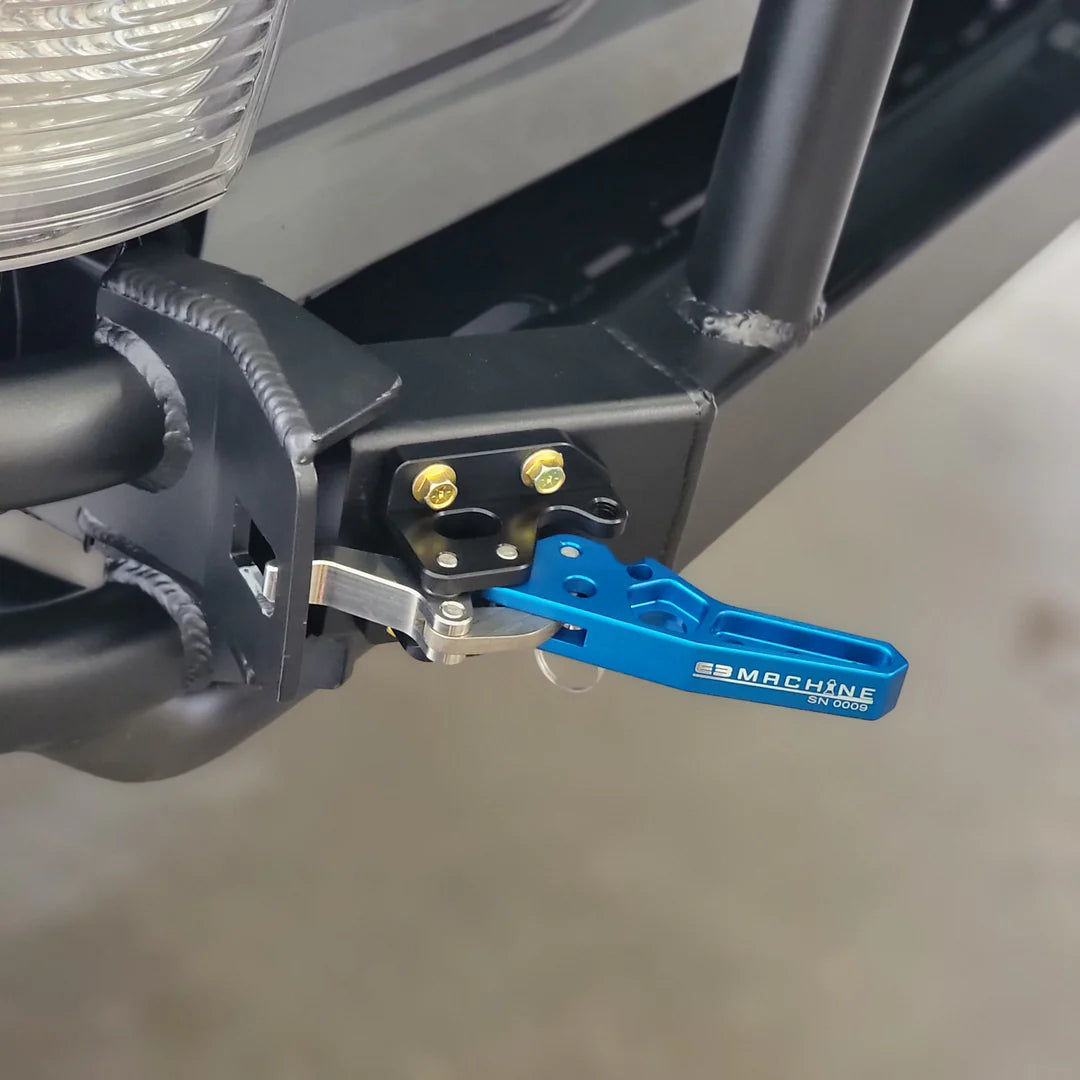

Double Sheared design, with 1 lock position point, Heavy Duty Custom Billet Compression latch, 2x3 rectangular tubing, .120" wall, 1.75" .120" Round DOM Tubing, and Short molle style paneling to house accessories like Tire mount, Camp Table, Hi Life, etc...
Add Ons/Accessories:
Bedside 1/4 Panel Protection (tree savers) $210
Stainless Steel Drop Table - TBA
Single/Double Jerry Can Holder: $80 / $140
HiLift Jack Mount: $65
Recommend buying from 3rd party:
Rear Camera Relocation kit
Weight Without Tire / Accessories - 118lbs
Lead Times: 10 weeks
We are ramping up additional team members to better serve you all, so lead times could be sooner!
Special Accommodations:
Please email us your order # for accessories you like to add so we can invoice you in future when your order is about almost ready.
Please email us if you have cut fenders or fiberglass width
